Explosion-proof encoders conforming to the strictest safety standards

Flammable substances such as chemicals, gas mixtures or oil place special demands on the sensors employed. Explosion-proof rotary encoders are used in areas at risk of explosion and meet the necessary safety standards. The explosion-proof incremental rotary encoder measures the values for speed, distance travelled or acceleration by determining the difference between the reference value and the current position using an opto-electronic scanning unit.

Explosion-proof absolute rotary encoders require no initial value and can provide the downstream electronics with additional measured values such as temperature information. Depending on requirements we supply reliable explosion-proof rotary encoders with a hollow or solid shaft in standard or custom versions.

Incremental Ex rotary-encoders

Standard version

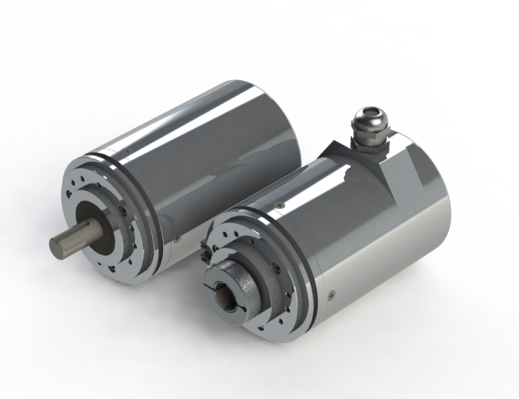

Series AWI 70 Ex & HWI 70 Ex

  • Incremental Ex-rotary-encoder
  • 10 or 12mm solid shaft
  • 12 or 14mm blind hollow shaft
  • Housingdiameter 70 mm for design type "Pressurised encapsulation" and high degree of protection
  • With Ex d IIC T6 (PTB 09 ATEX 1106 X)
  • Maximum 5.000 pulses / revolution
  • Short-circuit-proof outputs
  • Overvoltage and reverse polarity protection on the operating voltage input (at Ub= 10-30V DC)
Eigensicher Ex ia IIC / IIB Zone 0, Class 1 Div 1

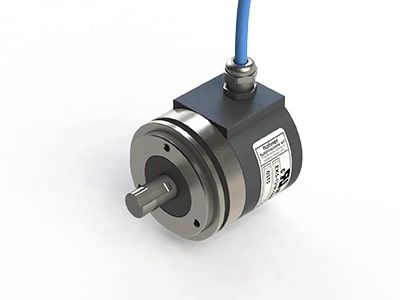

Series E

  • Incremantal Ex-rotary-encoder
  • Solid shaft diameter of 6, 10 or 12mm with syncroflange
  • Housing diameter 58mm, robust design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • For highest industrial requirements
  • To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used! We recommend our IB/ID series!

Series H

  • Incremantal Ex-rotary-encoder
  • Solid shaft diameter of 6, 10 or 12mm with clamping flange
  • Housing diameter 58mm, robust design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • For highest industrial requirements
  • To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used! We recommend our IB/ID series!

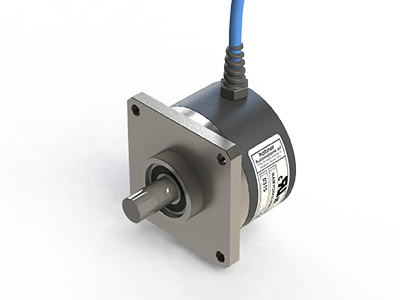

Series NAMYQX

  • Incremantal Ex-rotary-encoder
  • Solid shaft diameter of 10 or 12mm with square flange
  • Housing diameter 63,5mm, extrem robust design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • For highest industrial requirements
  • Also available with NAMUR output (Ex ia IIC Zone 0, Class 1 Div 1)
  • Completely in stainless steel
  • To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used! We recommend our IB/ID series!

Series W

  • Incremantal Ex-rotary-encoder
  • Solid shaft diameter of 6, 10 or 12mm
  • Housing diameter 70mm, robust design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • For highest industrial requirements
  • To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used! We recommend our IB/ID series!

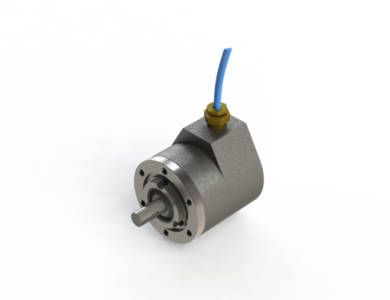

Series IP 3000

  • Incremantal Ex-rotary-encoder
  • Solid shaft diameter of 12mm
  • Housing diameter 72mm, extrem robust design and high degree of protection up to IP66
  • Maximum 5.000 pulses / revolution
  • For highest industrial requirements
  • To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used! We recommend our IB/ID series!

Series N20S

  • Incremental Ex-rotary-encoder
  • Blind hollow shaft diameter of 10 and 12mm
  • Housing diameter 50mm, robust design and high degree of protection
  • Maximum 1.024 pulses / revolution
  • For highest industrial requirements
  • Also available with NAMUR output (Ex ia IIC Zone 0, Class 1 Div 1)
  • To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used! We recommend our IB/ID series!

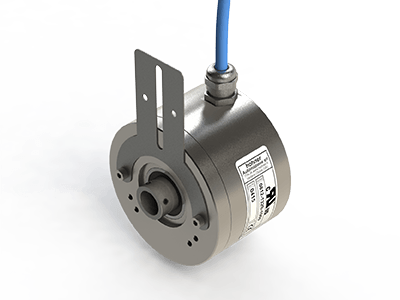

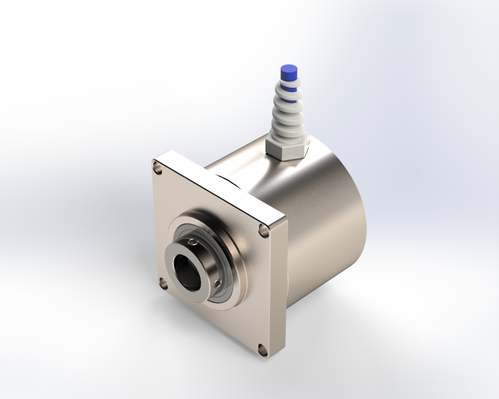

Series 08

  • Incremental Ex-rotary-encoder
  • Hollow shaft diameter of 8, 10 or 12mm
  • Housing diameter 72mm, extrem robust design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • For highest industrial requirements
  • Also available with NAMUR output (Ex ia IIC Zone 0, Class 1 Div 1)
  • Completely in stainless steel
  • To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used! We recommend our IB/ID series!

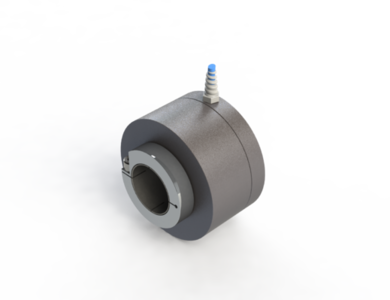

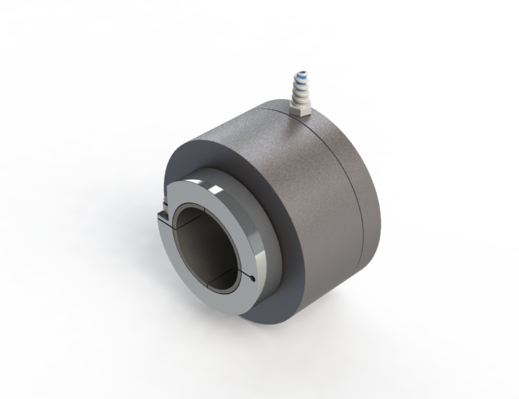

Series NAMFPX

  • Incremental Ex-rotary-encoder
  • Hollow shaft diameter of 14-30mm
  • Housing diameter 102mm, robust design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • For highest industrial requirements
  • Also available with NAMUR output (Ex ia IIC Zone 0, Class 1 Div 1)
  • To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used! We recommend our IB/ID series!

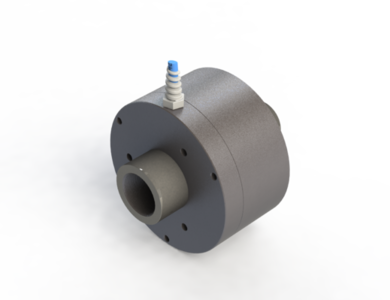

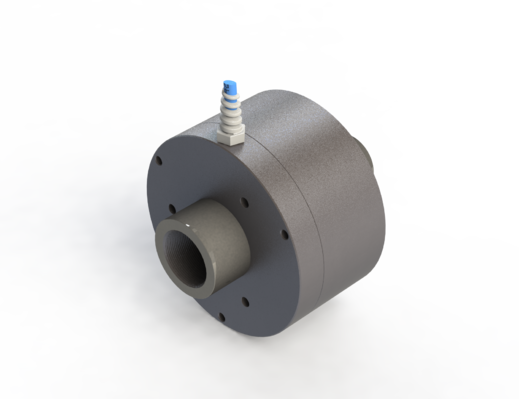

Series NAMFPX

  • Incremental Ex-rotary-encoder
  • With special threaded shaft
  • Housing diameter 102mm, robust design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • For highest industrial requirements
  • Also available with NAMUR output (Ex ia IIC Zone 0, Class 1 Div 1)
  • To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used! We recommend our IB/ID series!
  •

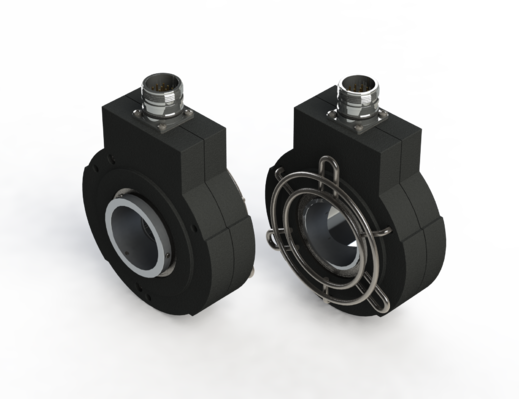

Series 14

  • Incremental Ex-rotary-encoder
  • Hollow shaft diameter of 25-40mm
  • Housing diameter 110mm, robust design and high degree of protection
  • Maximum 3.000 pulses / revolution
  • For highest industrial requirements
  • Also available with NAMUR output (Ex ia IIC Zone 0, Class 1 Div 1)
  • To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used! We recommend our IB/ID series!

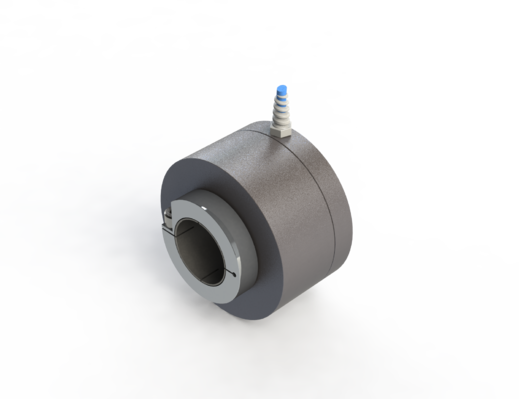

Series NAMFPX

  • Incremental Ex-rotary-encoder
  • Hollow shaft diameter of 40-50mm
  • Housing diameter 114mm, robust design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • For highest industrial requirements
  • Also available with NAMUR output (Ex ia IIC Zone 0, Class 1 Div 1)
  • To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used! We recommend our IB/ID series!
Explosionsgeschützt Ex d IIC Zone 1, Class 1 Div 1

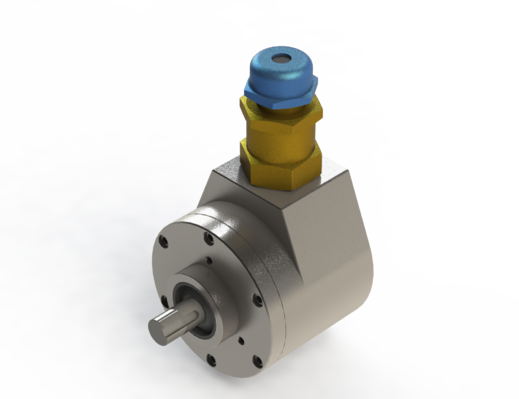

Series RXE

  • Incremental Ex-rotary encoder
  • Solid shaft diameter of 12mm
  • Housing diameter 72mm, extrem robust design and high degree of protection up to IP67
  • Maximum 5.000 pulses / revolution
  • For highest industrial requirements
  • Completely in stainless steel

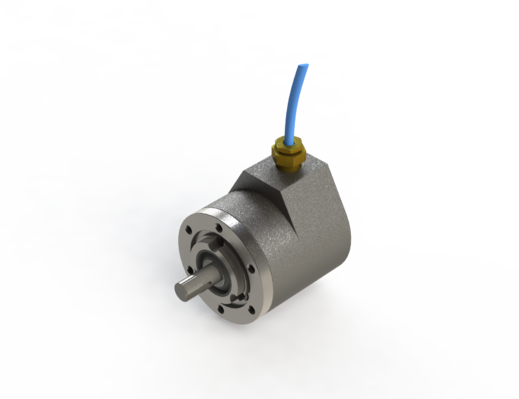

Series RXL

  • Incremental Ex-rotary encoder
  • Solid shaft diameter of 12mm
  • Housing diameter 72mm, extrem robust design and high degree of protection up to IP67
  • Maximum 5.000 pulses / revolution
  • For highest industrial requirements
  • Completely in stainless steel
  • Working temperature range down to -40°C

Absolute Ex rotary-encoders with parallel- or SSI interface

Standard version

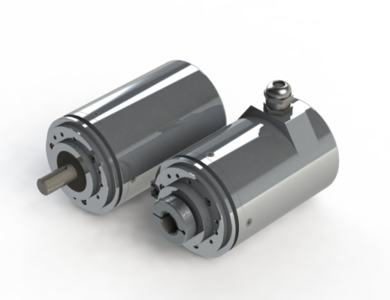

Series AWA 70 Ex & HWA 70 Ex

  • Absolute singleturn Ex-rotary-encoder with SSI interface
  • 10 or 12mm solid shaft
  • 12 or 14mm blind hollow shaft
  • Housingdiameter 70 mm for design type "Pressurised encapsulation" and high degree of protection
  • With Ex d IIC T6 (PTB 09 ATEX 1106 X)
  • Maximum resolution 13 Bit
  • Short-circuit-proof outputs
  • Overvoltage and reverse polarity protection on the operating voltage input (at Ub= 10-30V DC)
Explosionsgeschützt Ex d IIC Zone 1, Class 1 Div 1

Series CSRXE

  • Absolute singleturn Ex-rotary encoder with parallel output
  • Solid shaft diameter of 12mm
  • Housing diameter 72mm, extrem robust design and high degree of protection up to IP67
  • Maximum resolution 12 Bit
  • For highest industrial requirements
  • Completely in stainless steel

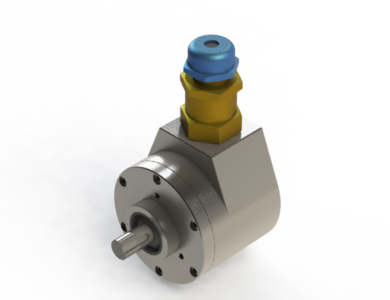

Series CSMXE

  • Absolute singleturn Ex-rotary encoder with parallel output
  • Solid shaft diameter of 12mm
  • Housing diameter 82mm, extrem robust design and high degree of protection up to IP67
  • Maximum resolution 12 Bit
  • For highest industrial requirements
  • Completely in stainless steel

Series CSMXE

  • Absolute singleturn Ex-rotary encoder with SSI output
  • Solid shaft diameter of 12mm
  • Housing diameter 82mm, extrem robust design and high degree of protection up to IP67
  • Maximum resolution 12 Bit
  • For highest industrial requirements
  • Completely in stainless steel
