Incremental rotary encoders our products

Incremental rotary encoders are used in virtually all branches of industry for the acquisition of measured data for rotary movements. The electromechanical device in the optical rotary encoder is designed to register changes in relation to a reference position and detects angle, distance travelled, speed, acceleration or direction of rotation by counting pulses with the aid of an opto-electronic scanning unit.

An integrated shaft transmits the torques and serves as the bearing for the rotating elements. Depending on requirements, we supply incremental rotary encoders with a solid shaft, a hollow shaft or a stub shaft in standard or custom versions.

General description of incremental encoders

General description of incremental encoders

Incremental rotary-encoder with solid shaft

As standard version

Series 20

  • Incremental rotary-encoder
  • Solid shaft diameter of 6mm
  • Square housing, small disgn and normal degree of protection
  • Maximum 1.024 pulses / revolution
  • For simple industrial requirements

Series AWI 40

  • Incremental rotary-encoder
  • Solid shaft diameter of 6mm
  • housing diameter 40mm, small design and high degree of protection
  • Maximum 1.024 pulses / revolution
  • For simple industrial requirements
  • Also available in stainless steel for aggressive environmental conditions

Series AWI 58

  • Incremental rotary-encoder
  • Solid shaft diameter of 6-12mm
  • Housing diameter 58mm, compact design and high degree of protection up to IP67
  • Maximum 5.000 pulses / revolution
  • For highest industrial requirements
  • Also available in stainless steel for aggressive environmental conditions

Serie AWI 58 H

  • Incremental rotary-encoder
  • Solid shaft diameter of 6-12mm
  • Housing diameter 58mm, compact design and high degree of protection up to IP67
  • Maximum 10.000 pulses / revolution
  • For highest industrial requirements
  • Also available in stainless steel for aggressive environmental conditions

Series PR 90

  • Incremental rotary-encoder, programmable
  • Solid shaft diameter of 6 or 10mm
  • Housing diameter 58mm, compact design and high degree of protection
  • Maximum 65.536 pulses / revolution programmable
  • For highest industrial requirements
  • Programming via Micro USB

Series PMS

  • Incremental rotary-encoder, programmable
  • Solid shaft diameter of 6-12mm
  • Housing diameter 58mm, compact design and high degree of protection
  • Maximum 65.536 pulses / revolution programmable
  • For highest industrial requirements
  • Programming via Micro USB, Bluetooth or two buttons

Series AWI 90

  • Incremental rotary-encoder
  • Solid shaft diameter of 12mm
  • Housing diameter 90mm, robust design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • For highest mechanical requirements
  • Also available in stainless steel for aggressive environmental conditions

Series AWI 90 Redundant

  • Incremental rotary-encoder
  • Solid shaft diameter of 12mm
  • Housing diameter 90mm, robust design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • For highest mechanical requirements
  • Redundant version (two completely separate, optical and electrical systems in one housing)
  • Also available in stainless steel for aggressive environmental conditions

Series PH 05

  • Incremental rotary-encoder
  • Solid shaft diameter of 12mm
  • Housing diameter 90mm, robust design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • For highest mechanical requirements

Series PA 02

  • Incremental rotary-encoder
  • Solid shaft diameter of 12mm
  • Housing diameter 102mm, extrem robust design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • For highest mechanical requirements
  • Low torque
As custom version

Series 27

  • Incremental miniature rotary-encoder
  • Solid shaft diameter of 4, 5 or 6mm
  • Housing diameter 30mm, small design and normal degree of protection
  • Maximum 1.000 pulses / revolution
  • For simple industriel requirements

Series 21

  • Incremental rotary-encoder
  • Solid shaft diameter of 6mm
  • housing diameter 40mm, small design and high degree of protection
  • Maximum 1.250 pulses / revolution
  • For simple industrial requirements

Series 24

  • Incremental miniature rotary-encoder
  • Solid shaft diameter of 6mm and square flange
  • Housing diameter 40mm, small design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • For simple industrial requirements

Series 28

  • Incremental miniature rotary-encoder
  • Solid shaft diameter of 6mm
  • Housing diameter 40mm, small design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • For simple industrial requirements

Series 20

  • Inremental miniature rotary-encoder
  • Solid shaft and fastening coupling
  • Housing diameter 46,5mm, small design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • For highest industrial requirements

Series 29

  • Inremental miniature rotary-encoder
  • Solid shaft and fastening coupling
  • Housing diameter 48mm, small design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • For highest industrial requirements

Series H

  • Incremental rotary-encoder
  • Solid shaft diameter of 6-12mm
  • Housing diameter 58mm, compact design and high degree of protection up to IP69K
  • Maximum 90.000 pulses / revolution
  • For highest industrial requirements
  • Also available in stainless steel for aggressive environmental conditions

Series H INOX

  • Incremental rotary-encoder
  • Solid shaft diameter of 6-12mm
  • Housing diameter 58mm, compact design and high degree of protection up to IP65
  • Maximum 90.000 pulses / revolution
  • For highest industrial requirements
  • stainless steel version

Series HC

  • Incremental rotary-encoder
  • Solid shaft diameter of 6-12mm and fastening coupling
  • Housing diameter 58mm, compact design and high degree of protection
  • Maximum 90.000 pulses / revolution
  • For highest industrial requirements

Series 66 - 1XP8001-1 / 1024

  • Incremental rotary-encoder
  • Thread shaft M8 and torque support
  • Housing diameter 58mm, compact design and high degree of protection
  • Maximum 10.000 pulses / revolution
  • For highest industrial requirements
  • 100% Equivalent for SIEMENS encoder 1XP8001-1 / 1024
  • 1:1 interchangeable (mechanically - electronically - pin out)

Series 66 - 1XP8001-2 / 1024

  • Incremental rotary-encoder
  • Thread shaft M8 and torque support
  • Housing diameter 58mm, compact design and high degree of protection
  • Maximum 10.000 pulses / revolution
  • For highest industrial requirements
  • 100% Equivalent for SIEMENS encoder 1XP8001-2 / 1024
  • 1:1 interchangeable (mechanically - electronically - pin out)

Series TR

  • Incremental rotary-encoder
  • Solid shaft diameter of 10, 11 or 12mm
  • Housing diameter 90mm, robust design and high degree of protection
  • Maximum 90.000 pulses / revolution
  • For highest mechanical requirements
  • Also available in stainless steel for aggressive environmental conditions

Incremental rotary-encoder with hollow or blind hollow shaft

As standard version

Series HWI 40

  • Incremental miniature rotary-encoder
  • Hollow shaft diameter of 6 or 8mm
  • Housing diameter 40mm, small disgn and normal degree or protection
  • Maximum 1.024 pulses / revolution
  • For simple industrial requirements
  • Direct assembly onto existing shafts

Series HWI 58

  • Incremental rotary-encoder
  • Hollow shaft diameter of 6-15mm
  • Housing diameter 58mm, compact disgn and high degree or protection
  • Maximum 5.000 pulses / revolution
  • For highest industrial requirements
  • Direct assembly onto existing shafts

Series SWI 58

  • Incremental rotary-encoder
  • Blind hollow shaft diameter of 6-15mm
  • Housing diameter 58mm, compact design and high degree of protection up to IP67
  • Maximum 5.000 pulses / revolution
  • Compact design for highest mechanical requirements
  • Direct assembly onto existing shafts

Series PR 90 H

  • Incremental rotary-encoder, programmable
  • Hollow shaft diameter of 10, 12 or 14mm
  • Housing diameter 58mm, compact design and high degree of protection
  • Maximum 65.536 pulses / resolution programmable
  • For highest industrial requirements
  • Programming via Micro USB

Series PMS

  • Incremental rotary-encoder, programmable
  • Hollow shaft diameter of 8-15mm
  • Housing diameter 58mm, compact design and high degree of protection
  • Maximum 65.536 pulses / revolution programmable
  • For highest industrial requirements
  • Programming via Micro USB, Bluetooth or two buttons

Series HWI 80

  • Incremental rotary-encoder
  • Hollow shaft diameter of 6-12mm
  • Housing diameter 80mm, small disgn and high degree or protection
  • Maximum 5.000 pulses / revolution
  • Direct assembly onto existing shafts
  • Also available in stainless steel for aggressive environmental conditions

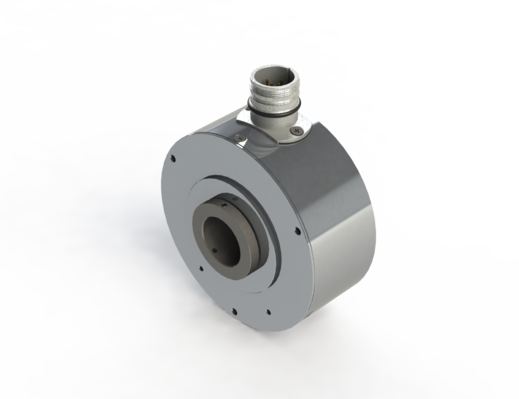

Serie HWI 103

  • Incremental rotary-encoder
  • Hollow shaft diameter of 10-25,4mm
  • Housing diameter 103mm, small disgn and high degree or protection
  • Maximum 5.000 pulses / revolution
  • Direct assembly onto existing shafts
  • Also available in stainless steel for aggressive environmental conditions

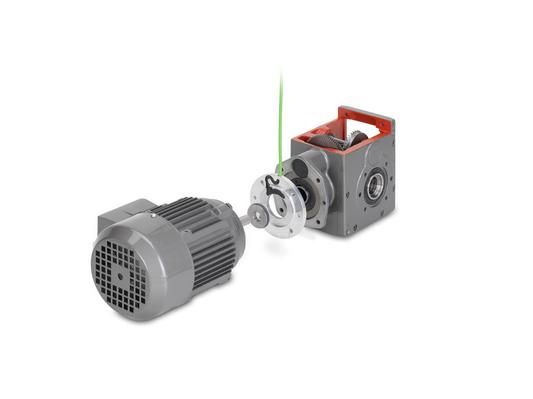

Series MIG Basic

  • Incremental rotary-encoder, magnetic
  • Various sizes, standardized for motor sizes according to IEC
  • Electronics integrated and protected in flange
  • Maximum 64 pulses / revolution
  • No open electronic components
  • Protection class standard IP 55 depending on sealing up to IP 66
  • Securely and mounted saving space between motor and machine flange, or gear flange
  • Flange width available as of 7 mm
  • Operating speed up to 6,000 rpm
  • Increased signal quality
  • Elastomer-bound magnetic ring
  • available in aluminium and stainless steel
  • manufactured by BEGE

Series MIG Nova+

  • Incremental rotary-encoder, magnetic
  • Various sizes, standardized for motor sizes according to IEC
  • Electronics integrated and protected in flange
  • Maximum 2.048 pulses / revolution
  • No open electronic components
  • Protection class standard IP 55 depending on sealing up to IP 66
  • Securely and mounted saving space between motor and machine flange, or gear flange
  • Flange width available as of 7 mm
  • Operating speed up to 6,000 rpm
  • Increased signal quality
  • Elastomer-bound magnetic ring
  • available in aluminium and stainless steel
  • manufactured by BEGE
As custom version

Series 25

  • Incremental rotary-encoder
  • Blind hollow shaft diameter of 5-10mm
  • Housing diameter 40mm, small design and normal degree of protection
  • Maximum 3.600 pulses / revolution
  • Direct essambly onto existing shafts

Series PEH

  • Incremental rotary-encoder
  • Hollow shaft diameter of 6 or 8mm in plastic housing
  • Housing diameter 48mm, small design and normal degree of protection
  • Maximum 2.048 pulses / revolution
  • Direct assembly onto existing shafts

Series PT

  • Incremental rotary-encoder
  • Hollow shaft diameter of 6 or 8mm
  • Housing diameter 50mm, small design and normal degree of protection
  • Maximum 500 pulses / revolution
  • Direct assembly onto existing shafts

Series BS

  • Incremental rotary-encoder
  • Blind hollow shaft diameter of 7-15mm
  • Housing diameter 58mm, compact design and high degree of protection
  • Maximum 10.000 pulses / revolution
  • For highest industrial requirements
  • Direct assembly onto existing shafts

Series BSP & BSC

  • Incremental rotary-encoder
  • Hollow or blind hollow shaft with a diameter of 7-15mm
  • Housing diameter 58mm, compact design and high degree of protection
  • Maximum 90.000 pulses / revolution
  • For highest industrial requirements
  • Direct assembly onto existing shafts

Series PR

  • Incremental rotary-encoder
  • Hollow shaft diameter of 6-14mm
  • Housing diameter 70mm, small design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • Direct assembly onto existing shafts
  • With hollow shaft and patented self-adjusting system

Series PL

  • Incremental rotary-encoder
  • Hollow shaft diameter of 6-14mm
  • Housing diameter 75mm, small design and high degree of protection
  • Maximum 3.600 pulses / revolution
  • Direct assembly onto existing shafts
  • With hollow shaft and patented self-adjusting system

Series PM

  • Incremental rotary-encoder
  • Hollow shaft diameter of 15-30mm
  • Housing diameter 88mm, small design and high degree of protection
  • Maximum 3.600 pulses / revolution
  • Direct assembly onto existing shafts
  • With hollow shaft and patented self-adjusting system

Series PK

  • Incremental rotary-encoder
  • Hollow shaft diameter of 15-150mm
  • Housing diameter 80-250mm, small design and high degree of protection
  • Maximum 5.000 pulses / revolution
  • Direct assembly onto existing shafts
  • With hollow shaft and patented self-adjusting system
Back to top
