Absolute encoders conforming to international quality standards

The latest generation of absolute value encoders & multi-turn encoders

Absolute rotary encoders are distance or angle encoders which provide exact measurements for recording movement distances, speeds or acceleration without initial references. Unlike incremental encoders, absolute encoders measure position information using a digital number field without first determining a reference value. The precise positioning of the absolute rotary encoder is reliably evaluated via the downstream sequential electronics unit. Besides the current position value, additional data such as temperature information can also be transmitted. Depending on the particular requirements we offer absolute rotary encoders with a solid shaft, hollow shaft or stub shaft in standard or special models.

Absolute multi-turn encoders allow a measurement range of more than 360 degrees by additional evaluation of the number of rotations. Initial calibration of the reference values is not necessary due to the correlation of a coded value of the position of the angle with each revolution. The output signal is determined by the downstream sequential electronics unit of the multi-turn encoder through the number of revolutions and the position of the shaft within one revolution. In order to meet individual needs, we produce multi-turn encoders with a hollow shaft or solid shaft in standard or special versions.

General description of absolute rotary-encoders

General description of absolute rotary encoders

Absolute rotary-encoder single- and multiturn with solid shaft

As standard version

Series AWA 58

  • Absolute singleturn rotary-encoder with parallel output
  • Solid shaft diameter of 6-12mm
  • Housing diameter 58mm, compact design and high degree of protection up to IP67
  • Maximum resolution 10 Bit
  • For highest industrial requirements
  • Also available in stainless steel for aggressive environmental conditions

Series BC 58

  • Absolute single- or multiturn rotary-encoder
  • Solid shaft diameter of 6 or 10mm
  • Housing diameter 58mm, compact design and high degree of protection up to IP67
  • Maximum resolution singleturn 17 Bit
  • Maximum resolution multiturn 25 Bit
  • For highest industrial requirements
  • Available interfaces: Parallel, SSI, ProfibusDP, Interbus K2 und K3, DeviceNet, CAN, CANopen

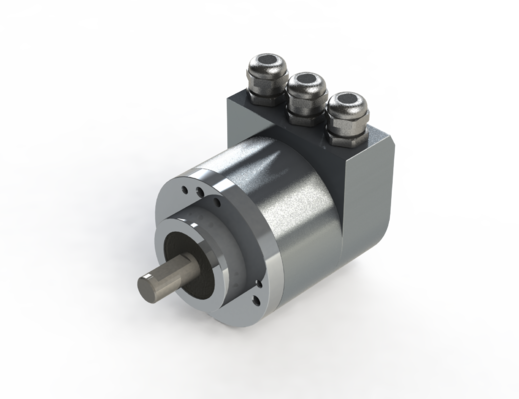

Series PS & PSM

  • Absolute single- or multiturn rotary-encoder
  • Solid shaft diameter of 6 or 10mm
  • Housing diameter 58mm, compact design and high degree of protection up to IP67
  • Maximum resolution singleturn 16 Bit
  • Maximum resolution multiturn 30 Bit
  • For highest industrial requirements
  • ProfiNet, Power link, Ethernet/TCP/IP, Ethernet IP or EtherCat interface

Series AWA 90

  • Absolute singleturn rotary-encoder with parallel- or SSI output
  • Solid shaft diameter of 12mm
  • Housing diameter 90mm, compact design and high degree of protection
  • Maximum resolution 12 Bit
  • For highest industrial requirements
  • Also available in stainless steel for aggressive environmental conditions

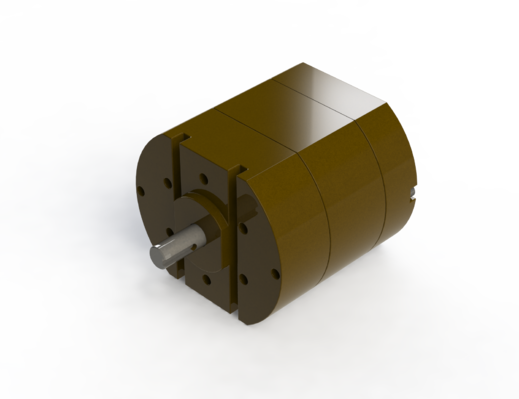

Series 70 - 140

  • Absolute singleturn rotary-encoder with parallel output
  • Solid shaft diameter of 12mm
  • Housing diameter 102mm, extrem robust design and high degree of protection
  • Maximum resolution 10 Bit
  • For highest mechanical requirements
  • Low torque

Series 72

  • Electronic multiturn rotary-encoder
  • Solid shaft diameter of 12mm
  • Housing diameter 102mm, extem robust design and high degree of protection
  • Resolution up to max. 3600 divisions
  • For highest industrial requirements
  • Low torque
  • 18-bit wider C‘Mos counter
  • Integrated accumulator
  • Additional filter circuits
As custom version

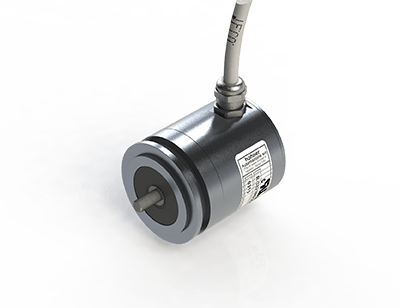

Series R

  • Absolute singleturn rotary-encoder with parallel output
  • Solid shaft diameter of 6mm
  • Housing diameter 50mm, compact design and high degree of protection
  • Maximum resolution 8 Bit
  • For highest industrial requirements

PDF to download:

Absolute Encoder Series R

Series S

  • Absolute singleturn rotary-encoder with parallel- or analogue output
  • Solid shaft diameter of 6-12mm
  • Housing diameter 58mm, compact design and high protection of degree up to IP67
  • Maximum resolution 17 Bit
  • For highest industrial requirements
  • Also available in stainless steel for aggressive environmental conditions

PDF to download:

Absolute Encoder Series S

Series SM

  • Absolute multiturn rotary-encoder with parallel- or analogue output
  • Solid shaft diameter of 6 or 10mm
  • Housing diameter 58mm, compact design and high protection of degree up to IP67
  • Maximum resolution 28 Bit
  • For highest industrial requirements
  • Also available in stainless steel for aggressive environmental conditions

PDF zum herunterladen:

Absolute Encoder Series SM

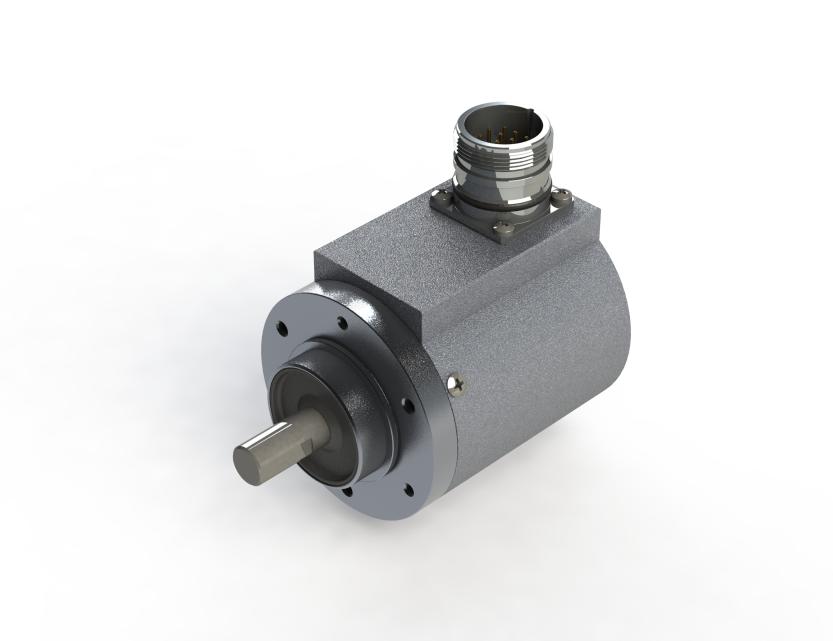

Series SS-SSM

  • Absolute multiturn rotary-encoder with SSI interface and SIN/COS output
  • Solid shaft diameter of 6 or 10mm
  • Housing diameter 58mm, compact design and high protection of degree up to IP67
  • Maximum resolution 33 Bit
  • For highest industrial requirements
  • Also available in stainless steel for aggressive environmental conditions

Series MS

  • Absolute singleturn rotary-encoder with parallel- or analogue output
  • Solid shaft diameter of 6, 8 or 10mm
  • Housing diameter 65mm, compact design and high degree of protection
  • Maximum resolution 17 Bit
  • For highest industrial requirements

PDF to download:

Absolute Encoder Series MS

Series MM

  • Absolute multiturn rotary-encoder with parallel- or analogue output
  • Solid shaft diameter of 10 or 12mm
  • Housing diameter 65mm, compact design and high degree of protection
  • Maximum resolution 28 Bit
  • For highest industrial requirements

PDF to download:

Absolute Encoder Series MM

Series TS

  • Absolute singleturn rotary-encoder with parallel- or analogue output
  • Solid shaft diameter of 10, 11 or 12mm
  • Housing diameter 90mm, robust design and high degree of protection
  • Maximum resolution 13 Bit
  • For highest industrial requirements

PDF to download:

Absolute Encoder Series TS

Series TM

  • Absolute multiturn rotary-encoder with parallel- or analogue output
  • Solid shaft diameter of 10 or 12mm
  • Housing diameter 90mm, robust design and high degree of protection
  • Maximum resolution 28 Bit
  • For highest industrial requirements

PDF to download:

Absolute Encoder Series TM

Absolute rotary-encoder single- and multiturn with hollow and blind hollow shaft

As standard version

Series BC 58

  • Absolute single- or multiturn rotary-encoder
  • Blind hollow shaft diameter of 10 or 12mm
  • Housing diameter 58mm, compact design and high degree of protection up to IP67
  • Maximum resolution singleturn 17 Bit
  • Maximum resolution multiturn 25 Bit
  • For highest industrial requirements
  • Available interfaces: Parallel, SSI, ProfibusDP, Interbus K2 und K3, DeviceNet, CAN, CANopen

Series PS & PSM

  • Absolute single- or multiturn rotary-encoder
  • Blind hollow shaft diameter of 10, 12 or 15mm
  • Housing diameter 58mm, compact design and high degree of protection up to IP67
  • Maximum resolution singleturn 16 Bit
  • Maximum resolution multiturn 30 Bit
  • For highest industrial requirements
  • ProfiNet, Power link, Ethernet/TCP/IP, Ethernet IP or EtherCat interface

Series SWA 90

  • Absolute singleturn rotary-encoder with parallel output
  • Blind hollow shaft diameter of 20mm
  • Housing diameter 90mm, small design and high degree of protection
  • Maximum resolution 12 Bit
  • Direct assembly onto existing shafts

Series HWA 103

  • Absolute singleturn rotary-encoder with parallel- or SSI output
  • Hollow shaft diameter of 10-25,4mm
  • Housing diameter 103mm, small design and high degree of protection
  • Maximum resolution 12 Bit
  • Direct assembly onto existing shafts
  • Also available in stainless steel for aggressive environmental conditions

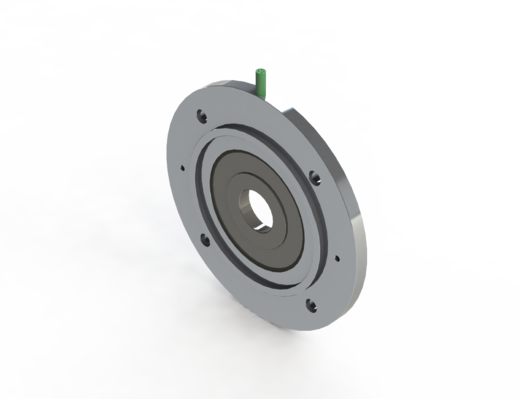

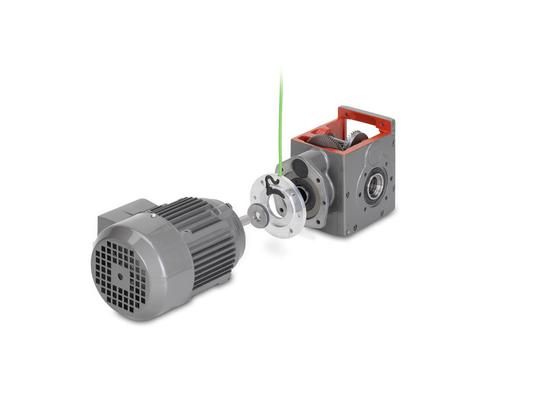

Series MIG AST

  • Absolute rotary-encoder, magnetic
  • Various sizes, standardized for motor sizes according to IEC
  • Electronics integrated and protected in flange
  • Resolution 4-18 Bit SSI BiSS singleturn
  • No open electronic components
  • Protection class standard IP 55 depending on sealing up to IP 66
  • Securely and mounted saving space between motor and machine flange, or gear flange
  • Flange width available as of 7 mm
  • Operating speed up to 6,000 rpm
  • Increased signal quality
  • Elastomer-bound magnetic ring
  • available in aluminium and stainless steel
  • manufactured by BEGE
As custom version

Series AS

  • Absolute singleturn rotary-encoder with parallel- or analogue output
  • Blind hollow shaft diameter of 7-15mm
  • Housing diameter 58mm, compact design and high degree of protection
  • Maximum resolution 13 Bit
  • For highest industrial requirements

PDF to download:

Absolute Encoder Series AS

Series ASP-ASC

  • Absolute singleturn rotary-encoder with parallel- or analogue output
  • Hollow shaft or blind hollow shaft diameter of 8-15mm
  • Housing diameter 58mm, compact design and high degree of protection
  • Maximum resolution 17 Bit
  • For highest industrial requirements

Series MAS

  • Absolute multiturn rotary-encoder with parallel- or analogue output
  • Hollow shaft or blind hollow shaft diameter of 10 or 12mm
  • Housing diameter 58mm, compact design and high degree of protection
  • Maximum resolution 28 Bit
  • For highest industrial requirements

Series SAS-SAM

  • Absolute single- or multiturn rotary-encoder with SSI interface and SIN/COS output
  • Hollow shaft or blind hollow shaft diameter of 8-15mm
  • Housing diameter 58mm, compact design and high protection of degree up to IP64
  • Maximum resolution 33 Bit
  • For highest industrial requirements
  • Also available in stainless steel for aggressive environmental conditions

Series PRA

  • Absolute singleturn rotary-encoder with parallel output
  • Hollow shaft diameter of 6-10mm
  • Housing diameter 70mm, small design and high degree of protection
  • Maximum resolution 11 Bit
  • Direct assembly onto existing shafts
  • With hollow shaft and patented self-adjusting system

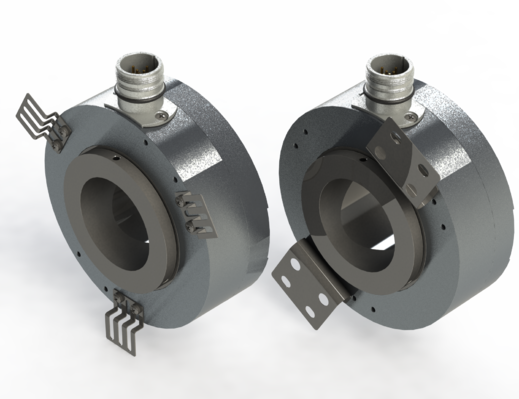

Series PZL

  • Absolute singleturn rotary-encoder with SSI- or analogue output
  • Hollow shaft diameter of 40-50mm
  • Various housing diameters, small design and high degree of protection
  • Maximum resolution 13 Bit
  • For highest mechanical requirements
  • Direct assembly onto existing shafts

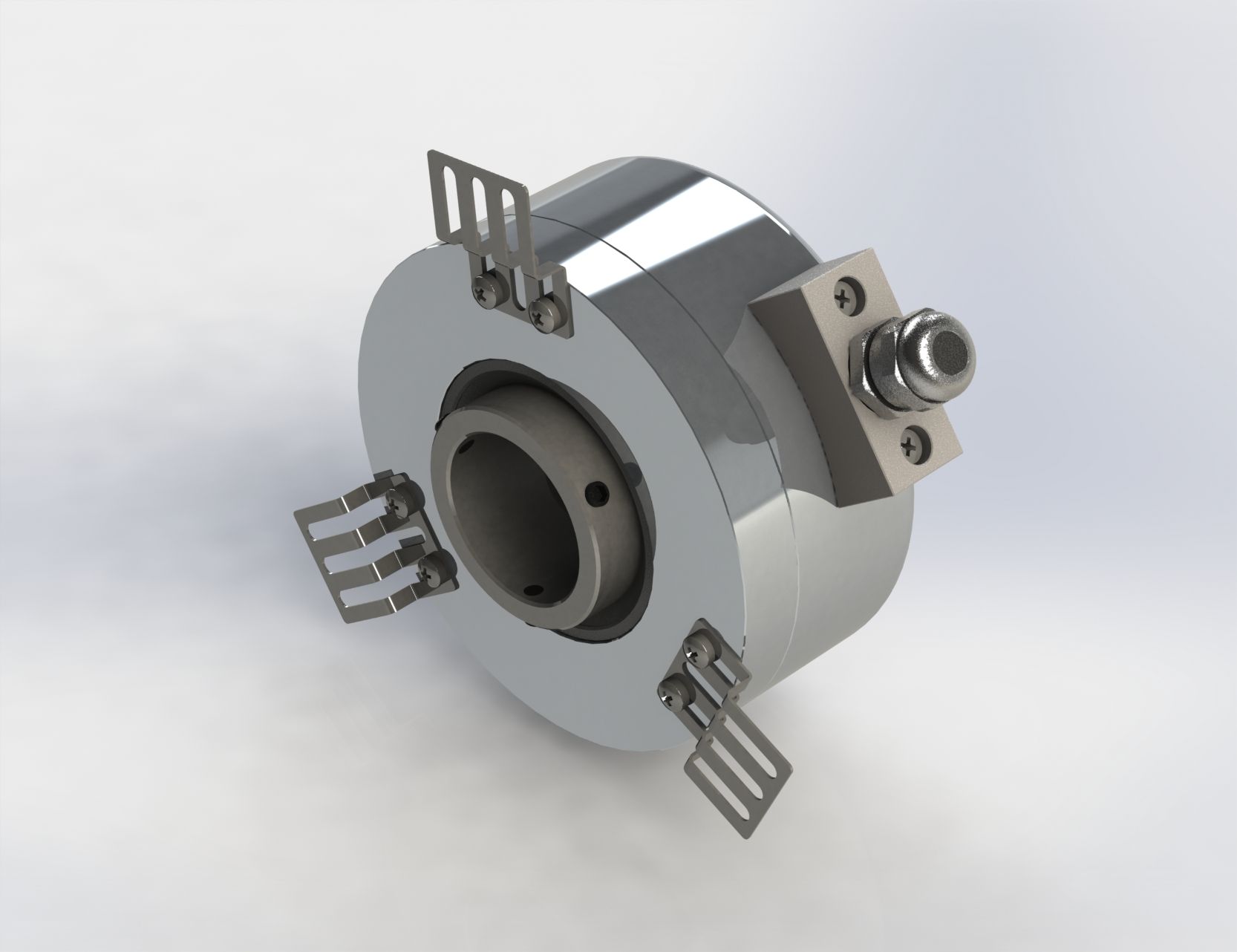

Series PZK

  • Absolute multiturn rotary-encoder with SSI- or analogue output
  • Hollow shaft diameter of 15-32mm
  • 90mm housing diameters, small design and high degree of protection
  • Maximum resolution 38 Bit
  • For highest mechanical requirements
  • Direct assembly onto existing shafts
